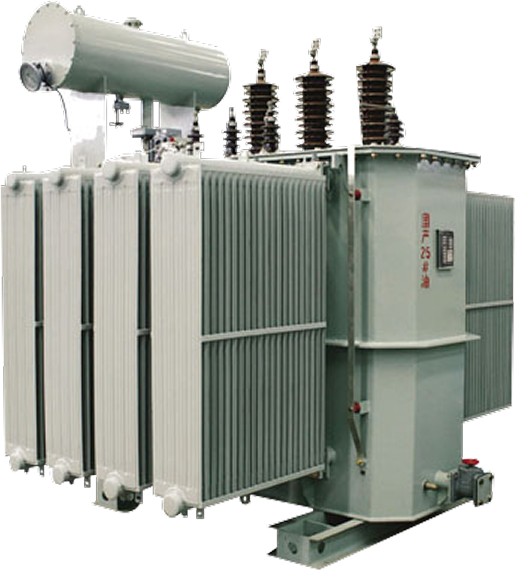

Designed to bridge the gap between high-voltage transmission and end-user voltage requirements, our Distribution Transformers provide critical services in medium and low-voltage networks. They are ideal for urban, rural, and industrial power distribution, converting electrical power to usable levels for homes, businesses, and factories. With compact designs and a focus on energy efficiency, these transformers offer excellent performance with minimal energy loss. Our Distribution Transformers are designed for easy installation and maintenance, ensuring long-term reliability even in challenging environmental conditions. Low noise levels and an environmentally friendly, pollution-free design exceed public safety standards and are available with optional on/off switches for added control. These transformers ensure optimal performance and stability, making them a cost-effective and sustainable solution for modern power distribution needs.
| Category | Specification |
|---|---|
| Ratings | From 25kVA up to 3150 kVA (higher ratings available upon request) |
| Type of Core | CRGO (Cold Rolled Grain Oriented Steel), Amorphous Core (As per customer specification) |
| Number of Phases | Three Phase, as per requirement of client |
| Frequency | 50Hz, 60Hz |
| Primary Voltage | Up to 33,000 V |
| Secondary Voltage | 433 V (Other voltage available upon request) |
| Winding Material/Conductor | Copper or Aluminium (As per customer specification) |
| Cooling | ONAN, ONAF, KNAN (As per customer specification) |
| Insulating Fluid | Mineral Oil / Ester Oil (As per specification) |
| Installation Type | Indoor/Outdoor |
| Colour | As per customer specification |
| Cooling Arrangement | Corrugation or Pressed Steel Radiators (As per customer specification) |
| Other Optional Fittings | Available upon request |
| Safety Devices | Available upon request |
| Type of Tap Switch | Off-Circuit and ON-load Tap Changer (As per customer’s specification) |
| CSP Feature (Completely Self Protected) | Available upon request |
| Vector Group | Dyn-II or as specified |
| Tap Range | +5% to -10% in steps of 2.5% (Other tapping options available upon request) |
| Hermetically Sealed Type | With gas cushion/fully filled or conventional type (with conservator) |
| Max Ambient Temperature Rise | As per customer’s specification |
| Top Oil Temperature Rise | As per customer’s specification |
| Average Winding Temperature Rise | As per customer’s specification |
| Insulation Level | ≤ 12 kV, ≤ 24 kV, ≤ 36 kV |
| Applicable Standards | IEC, ANSI, BS, IS, SABS, IS, REC, CBIP, IEC, ANSI, JIS, BS etc |
| On Load Tap Changer | With RTCC & AVR (Available upon request) |
Connect with our experts to get a tailored transformer solution that fits your specific power needs.
